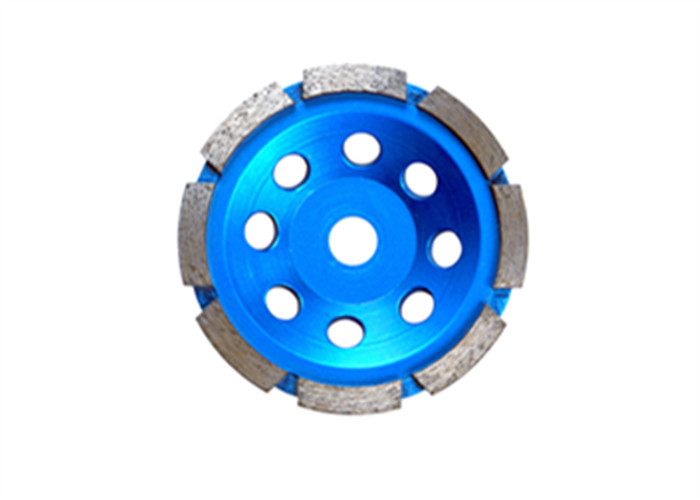

Blue 4'' Diamond Cup Wheel Sintered Silver Brazed Single Row Cup Wheel
Concentration selection: concentration is a unique property of diamond grinding wheel and cubic boron nitride grinding wheel.It refers to the content of diamond or cubic boron nitride per unit volume in the working layer of grinding wheel.Concentrations are 25 %, 50 %, 75 %, 100 %, 150 % and 200 %.High concentration, participate in the cutting of more grinding particles, so that the cutting thickness and grinding force decreased, grinding temperature decreased, grinding ratio increased.For example, grinding hard alloy, the concentration from 25 % to 100 %, so that the premature shedding of abrasive particles, abrasive consumption increases.In general, resin binder abrasive selection of 50 % ~100 % of the concentration;The bronze bond abrasive tools are selected with 75 % ~150 % concentration.Choose 200 % concentration of electroplating binding abrasive tools;High concentration should be selected for coarse particle size, forming grinding and high efficiency grinding.
Smooth grinding and finishing of construction material surface
Features:Single row cup wheel is ideal for beveling,smothing and shaping,excellent performance.
Application: Granite, marble, concrete, masonry
Machinery: Angle grinder
Different arbor sizes and segment specifications are available upon request
| Item No. | Diameter | Bore | | Segment | Segment |
| | inch | mm | mm | inch | W(mm) | H(mm) | NO. |
| WS105SS | 4'' | 105 | 22.23 | 7/8'' | 5 | 8 | 8 |
| WS115SS | 4.5'' | 115 | 22.23 | 7/8'' | 5 | 8 | 9 |
| WS125SS | 5'' | 125 | 22.23 | 7/8'' | 5 | 8 | 10 |
| WS150SS | 6'' | 150 | 22.23 | 7/8'' | 5 | 8 | 11 |
| WS180SS | 7'' | 180 | 22.23 | 7/8'' | 5 | 8 | 12 |
